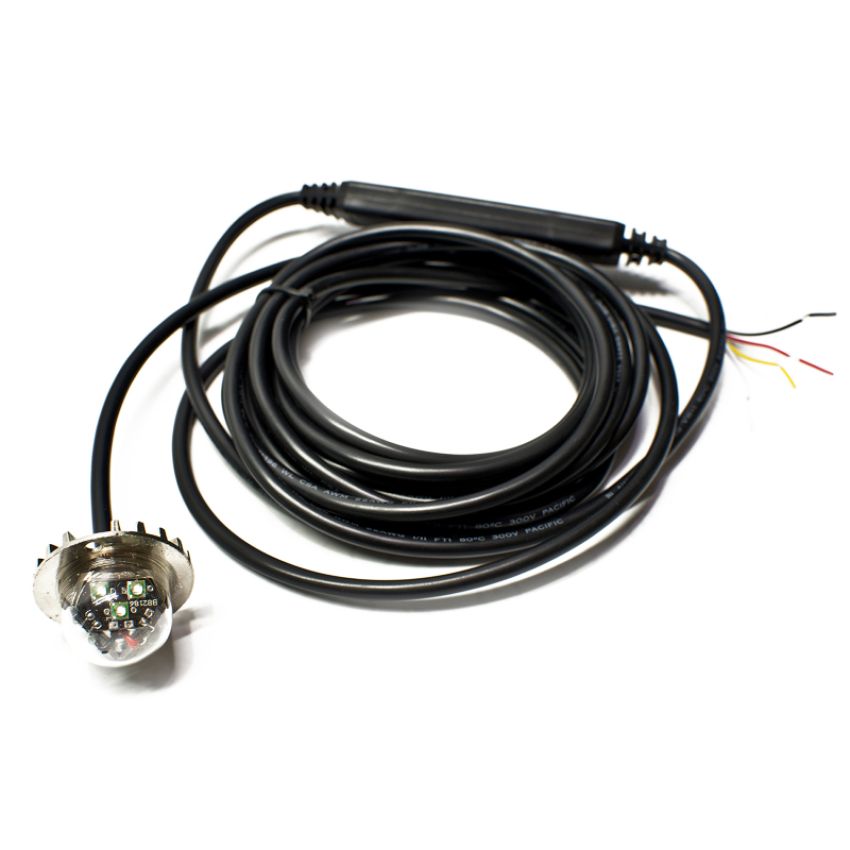

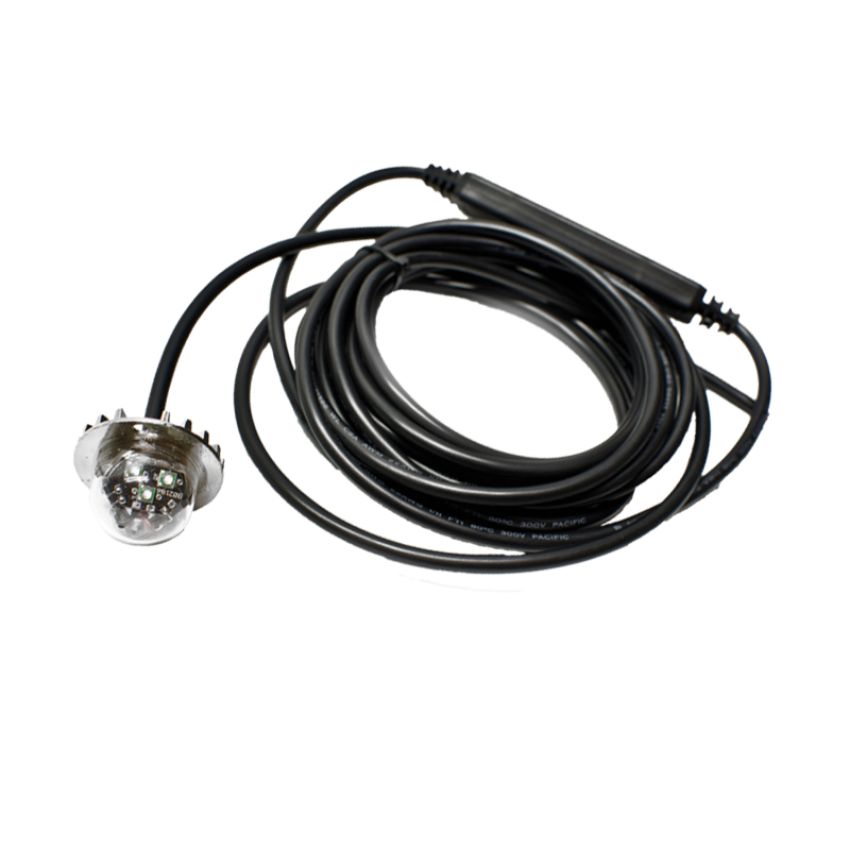

Only 7/8 inches in height, the ORACLE SMD Omni-Directional Emergency Strobe is perfect for most applications where size and intensity are important. This sleek self-contained LED requires only a one inch hole in any style head light, cornering light or tail light assembly. Can also be mounted on the outside of your vehicle as well. Product Features:- 10 flash patterns, includes a synchronized feature for alternating and synced flashing of multiple LED Lights. - Includes power, pattern and synchronization wires. - 4 LED Version and 9 LED Version available. - 10-16VDC Operation. - IP65 Rating. - Omni-directional LED Light mounts in any position. - Available in White, Blue, and Red. - Meets SAE J1113-41 Class 5. - No need for separate lamp drivers, flashers, ballast or power supplies to install. - LED Dimensions:1 1/2" W X 7/8" H - Driver Dimensions:4 3/4" L X 15/16" W X 7/16" H - Overall length: 160" or 13.3 ft. Wiring Explanation: - Red Wire - Power - Black Wire - Constant Ground - White Wire - Sync Wire used to sync other SMD Emergency Strobes - Yellow Wire- Used to select different modes, simple switch is needed Mode Explanation: - Steady On - Mode Cycle - SOS - 2 Round Burst - 3 Round Burst - 4 Round Burst - Fast Flash Steady - Fast Flash Burst - Fast Flash Burst + 12 SOS Flashes - Fast Flash Burst + 6 SOS Flashes Package includes: 1 x LED Light with driver 2 x Screws 1 x Gasket
Since 1999 ORACLE Lighting has set the standard for innovation in the automotive lighting industry
Built upon passion for being the best and staying at the cutting edge of design and technology our philosophy is this: in today’s world of fly-by-night vendors, we think it is important to partner with businesses that you can trust to be there for you today, tomorrow, and for years to come
Since we specialize in lighting (and only lighting) our staff efficiently executes a seamless product lifecycle from design, to launch, to support and our satisfaction guarantee backed by our outstanding and easy to use warranty
